Made from high quality aluminium alloy and case hardened piston rods this powerful and compact booster is suitable for vertical or horizontal mounting. Simplicity in design and high quality material selection makes this hydraulic booster suitable for many years of safe efficient and reliable operation. The micro series has five pressure outlet ports for connection to multiple devices. The pressure ports can be pressure feed to 65 Bar to allow cylinders to be brought into contact with the work piece prior to booster providing the final high pressure.
Metric Units
Switch to Imperial Units

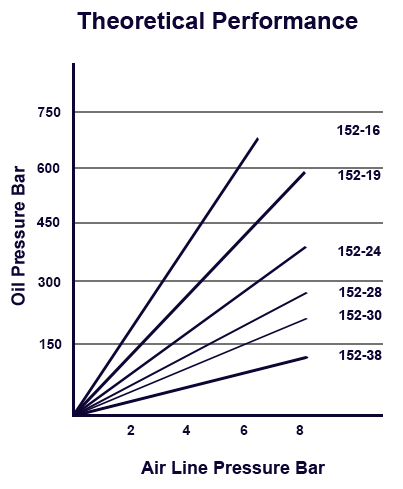

Model No.
Intensification
152-16
92.2/1
152-19
64.0/1
152-24
41.0/1
152-28
29.6/1
152-30
25.5/1
152-38
16.0/1
Max. Air Pressure
Max. Oil Pressure
6.9-Bar
636.1-Bar
8.2-Bar
524.8-Bar
8.2-Bar
336.2-Bar
8.2-Bar
242.7-Bar
8.2-Bar
209.1-Bar
8.2-Bar
131.2-Bar
Max. Oil Output
Weight
24.6-CC
10-Kg
35.2-CC
10-Kg
55.1-CC
10-Kg
76.2-CC
10-Kg
88.5-CC
10-Kg
141.3-CC
10-Kg
Model No.
Intensification
152-16
92.2/1
152-19
64.0/1
152-24
41.0/1
152-28
29.6/1
152-30
25.5/1
152-38
16.0/1
Max. Air Pressure
Max. Oil Pressure
100-PSI
9220-PSI
119-PSI
7616-PSI
119-PSI
4879-PSI
119-PSI
3522-PSI
119-PSI
3034-PSI
119-PSI
1904-PSI
Max. Oil Output
Weight
1.5-CU IN
22lb
2.15-CU IN
22lb
3.36-CU IN
22lb
4.65-CU IN
22lb
5.40-CU IN
22lb
8.62-CU IN
22lb
