Our range of Clamping Cylinders offer the benefits of precision and maximum clamping force. Simplicity in design and high quality material selection makes our clamping cylinders suitable for many years of safe and reliable operation.
Metric Units
Switch to Imperial Units

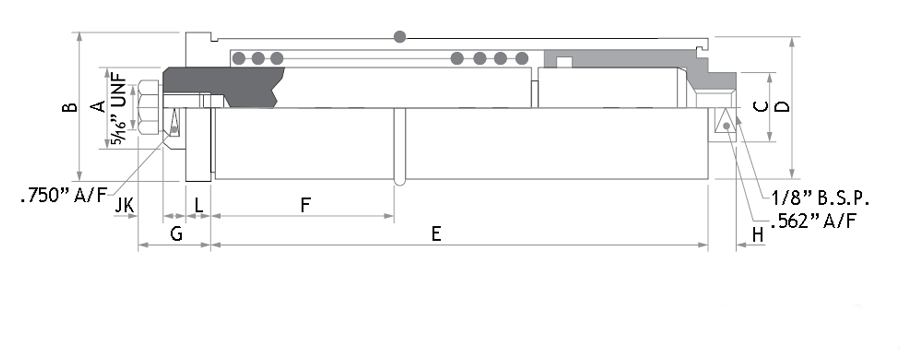

Dimension
Measurement
A
21.99mm
B
41.28mm
C
19.05mm
D
38.10mm
Dimension
Measurement
E
138.10mm
F
50.80mm
G
19.51mm
H
7.92mm
Dimension
Measurement
J
6.81mm
K
6.35mm
L
6.35mm
General Spec
Measurement
Stroke
25.4mm
Effective Area
3.80cm²
Swept volume
2.43cm³
Max Working Pressure
105-Bar
Dimension
Measurement
A
0.866ins
B
1.625ins
C
0.750ins
D
1.500ins
Dimension
Measurement
E
5.437ins
F
2.000ins
G
0.768ins
H
0.312ins
Dimension
Measurement
J
0.268ins
K
0.250ins
L
0.250ins
General Spec
Measurement
Stroke
1in
Effective area
0.59in²
Swept volume
0.59in³
Max Working Pressure
1500-PSI
