Minor 29-13-0

Our range of Hollow cylinders provide high force for both push and pull applications. Simplicity in design and high quality material selection makes our hollow cylinders suitable for many years of safe and reliable operation.

Metric Units

Switch to Imperial Units

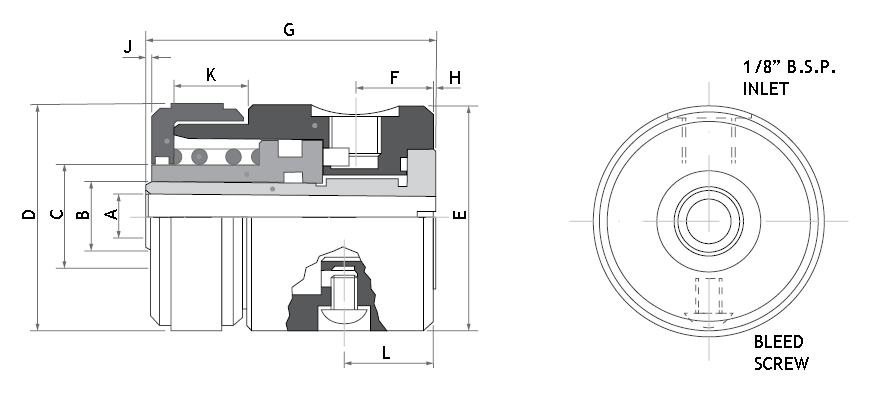

Dimension

Intensification

A

8.3mm

B

12.70mm

C

19.05mm

D

41.66mm

Dimension

Measurement

E

41.19mm

F

14.27mm

G

52.37mm

H

0.25mm

Dimension

Measurement

J

0.76mm

K

13.49mm

L

15.62mm

General Spec

Measurement

Stroke with spring

6.35mm

Stroke without spring

15.49mm

Effective area

5.16cm²

Swept vol. with spring

3.28cm³

Swept vol. without spring

8.03cm³

Max Working Pressure

275-Bar

Dimension

Intensification

A

0.328ins

B

0.500ins

C

0.750ins

D

1.640ins

Dimension

Intensification

E

1.662ins

F

0.562ins

G

2.062ins

H

0.010ins

Dimension

Intensification

J

0.030ins

K

0.531ins

L

0.615ins

General Spec

Measurement

Stroke with spring

0.25in

Stroke without spring

0.61in

Effective area

0.80in²

Swept vol. with spring

0.20in³

Swept vol. without spring

0.49in³

Max Working Pressure

4000-PSI
